KLM/KLP/DKLM/DKLP Serisi

KLM/KLP/DKLM/DKLP Serisi

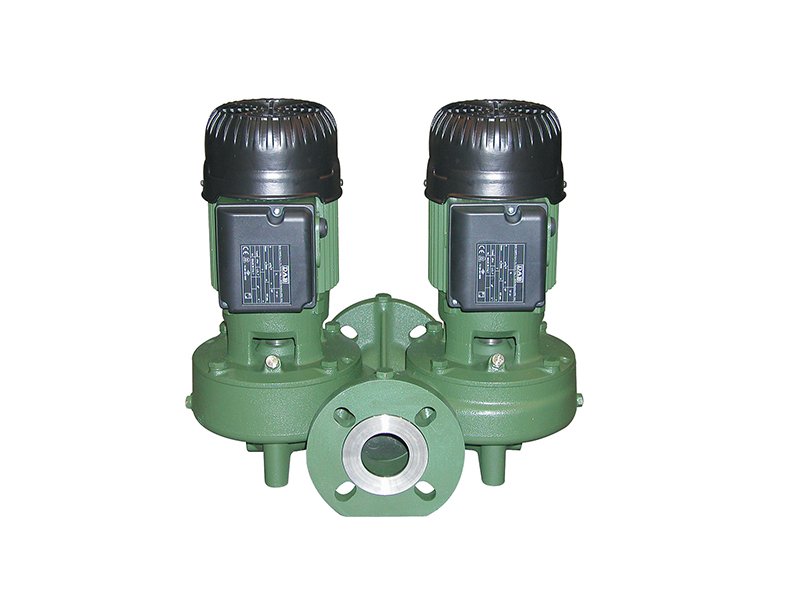

 Description
Pump body and motor support in cast iron.
PN10 flanged connections with threaded holes for control
pressure gauges.Technopolymer impeller and carbon/
ceramic mechanical seal.
Four-pole, asynchronous motor for the KLM and DKLM
versions and two-pole for the KLP and DKLP versions.
Built-in thermal and current overload protection and a
capacitor permanently on in the single-phase version.
Three-phase motors should be protected with a suitable
overload protection complying with the regulations in
force. In the twin version there is a built-in automatic
clapet valve on the delivery vent; the standard supply
also includes a blank flange.

Features

Operating range: from 2 to 67 m3/h with head up to
13.7 metres.
Liquid temperature range: from -15°C to +120°C.
Pumped liquid characteristics: clean , free from solids
or abrasive substances , not viscous, not aggressive, not
crystallised, chemically neutral.
Maximum ambient temperature: +40°C.
Maximum working pressure: 10 bar (1000 kPa).
Protection level: IP 55.
Insulation class: F.
Standard flanging: PN 10/PN 6.
Counter flanges either threaded or with welded
collar as requested.
