 Description

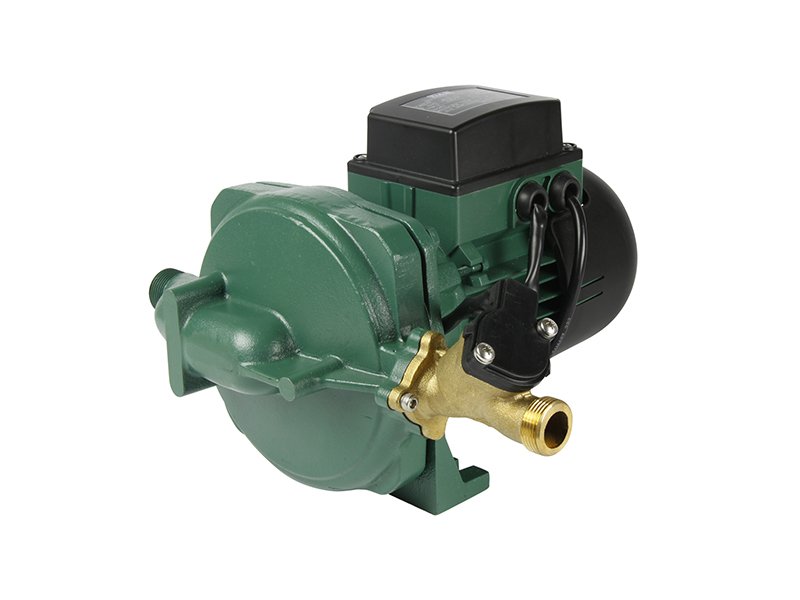

K-HA single impeller centrifugal pump is designed for water pressure boosting in households, flats (domestic properties) to provide additional pressure to hot and
cold water taps and similar outlet points. K-HA centrifugal pump is mainly for use in open vented systems(tanks), but may also be installed directly on the incoming
water mains supply to feed a boiler, provided approval has been obtained from the local Water Company. The pump incorporates a flow switch which starts and stops
the pump according to flow when a tap is opened or closed. The pump is supplied with a 0,3 meter power cable.

Features

Operating range: up to 4,2 m3/h with head up to 22m.
Liquid quality requirements: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the
characteristics of water.
Liquid temperature range: from 0°C to +100 °C
Ambient temperature: from -10°C to +55 °C
Enviroment humidity: ≤ 95%
Maximum operating pressure: 6 bar (600 kPa)
