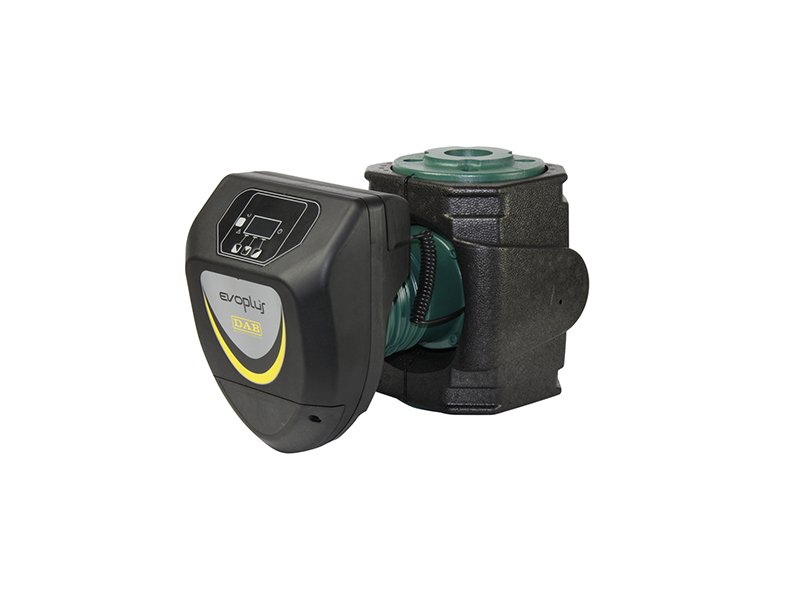

EVOPLUS SAN Serisi

EVOPLUS SAN Serisi

 Description
Circulator for domestic hot water systems of the closed
circuit pressurized type or open circuit type. Bronze pump
body. Motor casing in die-cast aluminium. Technopolymer
impeller. Steel motor shaft mounted on ceramic bushings
lubricated by the pumped liquid. Stainless steel rotor
sleeve and closing flange, stator sleeve in carbon fibre
composite. Ceramic thrust ring, ethylene propylene
sealing rings. Synchronous motor with permanent
magnet rotor.

Features

Operating range:
from 2 to 12 m3/h with head up to 11 meters.
Liquid temperature range:
from -10 °C to 110 °C.
Pumped liquid: clean, free from solids and mineral oils,
not viscous, chemically neutral, close to the properties
of water.
Maximum working pressure: 16 bar (1600 kPA).
Protection rating: IP 44.
Insulation class: F.
Installation: with horizontal motor shaft.
