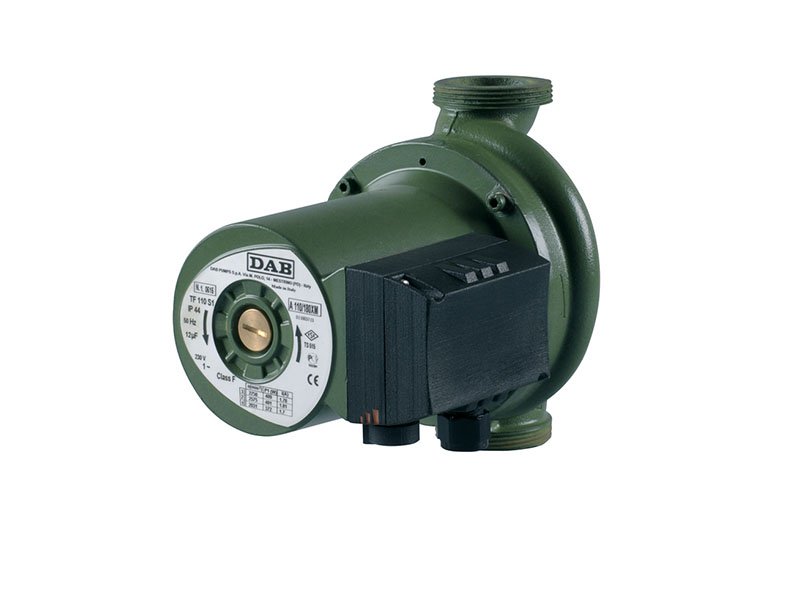

A-B-D Serisi

A-B-D Serisi

 Description
Pump body in cast iron and motor casing in die-cast
aluminium. Technopolymer impeller and tempered
stainless steel driving shaft mounted on graphite brushings
lubricated by the pumped liquid itself. Flanged vents,
(threaded series A), provided with threaded connectors for
controlling gauges. Stainless steel protective rotor sleeve,
stator sleeve and closing flange. Ceramic thrust bearing,
E.P.D.M. “O” rings and brass air outlet cap. The two-pole
asynchronous motor with wet rotors designed for threespeed
operation, single-phase version, for two-speed
operation, for three-phase version. Thermal overload
protection incorporated in the single phase version.
In the twin version an automatic clapet type valve and
blank flange are provided.


Only for extra EU markets. Please contact our sales network for more information

Features

Operating range: from 1 to 12 m3/h with head up to
11 metres.
Liquid temperature range: from -10°C to +110°C.
Pumped liquid characteristics: clean, free from solids
and mineral oils, not viscous, chemically neutral, close to
the characteristics of water (max 30% glycol).
Maximum working pressure: 10 bar (1000 kPa).
Protection level: IP 44
Insulation class: F
Cable grommet: PG 11
Installation: with motor axis horizontal.
